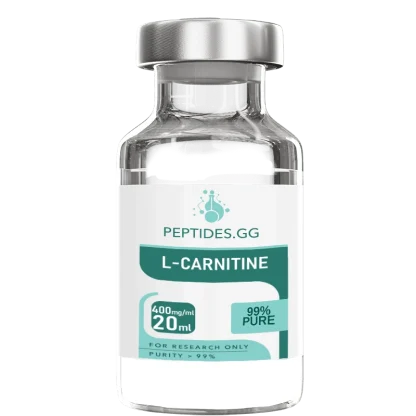

L-Carnitine

Research Overview

L-Carnitine serves as an invaluable research tool for investigating fundamental energy metabolism and mitochondrial function in laboratory settings. This naturally occurring amino acid derivative, biosynthesized from lysine and methionine, plays an indispensable role in cellular energy production by facilitating the transport of long-chain fatty acids into mitochondria for oxidation. Research applications span metabolic physiology, cardiac function, skeletal muscle energetics, neurological studies, and reproductive biology.

The compound’s name derives from the Latin carnus (flesh), reflecting its initial isolation from meat extracts in 1905 by Russian scientists Gulewitsch and Krimberg. The biologically active L-stereoisomer contrasts with the inactive D-carnitine and potentially toxic DL-racemic mixture. L-Carnitine research has expanded significantly beyond basic metabolism studies to encompass investigations of cardiac ischemia, neurodegeneration, male fertility, exercise physiology, and aging-related metabolic decline.

L-Carnitine functions as an essential cofactor in the carnitine palmitoyltransferase (CPT) system, which gates fatty acid entry into mitochondria. This rate-limiting step in fatty acid oxidation makes L-Carnitine central to understanding energy substrate utilization, metabolic switching between glucose and fatty acid oxidation, and cellular responses to energy demands. Research demonstrates that L-Carnitine availability can influence metabolic flexibility, oxidative capacity, and cellular adaptation to metabolic stress.

Molecular Characteristics

Complete Specifications:

• CAS Registry Number: 541-15-1
• Molecular Weight: 161.2 Da
• Molecular Formula: C7H15NO3
• Chemical Name: (R)-3-Carboxy-2-hydroxy-N,N,N-trimethyl-1-propanaminium hydroxide, inner salt
• Alternative Names: Levocarnitine, L-Carnitine, (R)-Carnitine
• PubChem CID: 10917
• Classification: Quaternary ammonium compound, amino acid derivative
• Appearance: White to off-white crystalline powder or lyophilized powder
• Solubility: Highly soluble in water (>2,000 mg/mL), methanol; poorly soluble in organic solvents
• Stereochemistry: L-configuration (biologically active stereoisomer)

The molecular structure features a quaternary ammonium group with three methyl substituents, a hydroxyl group, and a carboxylate function creating a zwitterionic compound at physiological pH. This charged structure prevents passive diffusion across membranes, necessitating specific transport systems (OCTN2, OCTN1, ATB0,+) for cellular uptake. The stereochemistry at the 3-position determines biological activity, with only the L-isomer serving as substrate for carnitine palmitoyltransferases.

L-Carnitine’s chemical stability exceeds many research compounds, remaining stable in aqueous solution across physiological pH ranges. The compound withstands standard laboratory handling conditions and maintains activity through freeze-thaw cycles when properly stored. Unlike peptides requiring strict handling protocols, L-Carnitine’s small molecule structure and ionic nature confer enhanced stability for diverse experimental applications.

Biochemical Function and Mechanism

Fatty Acid Transport System:

L-Carnitine’s primary biochemical function involves facilitating long-chain fatty acid (LCFA) transport across the impermeable inner mitochondrial membrane through the carnitine shuttle system:

1. CPT-I Reaction (Outer Membrane): Carnitine palmitoyltransferase I (CPT-I) catalyzes the formation of acylcarnitine from long-chain acyl-CoA and L-carnitine in the intermembrane space. This enzyme represents a key regulatory point, subject to inhibition by malonyl-CoA (the first committed intermediate in fatty acid synthesis).

2. CACT Transport: Carnitine-acylcarnitine translocase (CACT) exchanges acylcarnitine into the mitochondrial matrix while returning free carnitine to the intermembrane space, maintaining the carnitine pool.

3. CPT-II Reaction (Inner Membrane): Carnitine palmitoyltransferase II (CPT-II) regenerates long-chain acyl-CoA and free carnitine within the matrix, making fatty acids available for beta-oxidation.

This elegant shuttle system serves dual purposes: enabling fatty acid oxidation while preventing excess acyl-CoA accumulation in the cytosol and mitochondrial matrix. Research demonstrates that L-Carnitine availability can influence the rate of fatty acid oxidation under certain metabolic conditions.

Additional Metabolic Functions:

Beyond fatty acid transport, L-Carnitine participates in several critical metabolic processes:

• Acyl Buffer System: L-Carnitine maintains the free CoA/acyl-CoA ratio within mitochondria by accepting acyl groups from acyl-CoA molecules, preventing CoA sequestration and maintaining oxidative metabolism.

• Acetyl Group Export: Acetyl-L-carnitine facilitates acetyl unit export from mitochondria, influencing glucose metabolism and providing acetyl groups for biosynthetic pathways.

• Branched-Chain Amino Acid Metabolism: L-Carnitine esters help remove excess acyl groups generated during branched-chain amino acid catabolism, preventing toxic accumulation.

• Peroxisomal Fatty Acid Oxidation: L-Carnitine participates in the transfer of fatty acids between peroxisomes and mitochondria for complete oxidation.

Pharmacokinetic Profile in Research Models

L-Carnitine pharmacokinetic characterization in preclinical research reveals important properties for experimental design:

Absorption and Bioavailability:

• Oral bioavailability: 14-18% in humans, with saturable intestinal absorption via OCTN2 transporter
• Higher bioavailability at lower doses due to transporter saturation
• Dose-dependent absorption kinetics: 2g dose achieves ~20% absorption; 6g dose achieves ~5% absorption
• Absorption enhanced when administered with carbohydrate-containing meals
• Intravenous administration achieves 100% bioavailability for mechanistic studies

Distribution and Tissue Concentrations:

• Steady-state plasma concentration: 40-60 μmol/L (endogenous levels)
• Tissue concentrations far exceed plasma: skeletal muscle (~20-30 mmol/kg), cardiac muscle (~10-15 mmol/kg)
• Brain concentrations: ~1-2 mmol/kg despite blood-brain barrier
• Testicular concentrations exceptionally high: >30 mmol/kg
• Volume of distribution: ~0.3 L/kg, indicating limited extravascular distribution relative to total body water

Metabolism and Elimination:

• Minimal metabolism in most tissues; primary metabolic transformation occurs in intestinal microbiota
• Bacterial trimethylamine (TMA) formation from excess dietary L-carnitine, subsequently oxidized to TMAO in liver
• Renal excretion: primary elimination route with efficient tubular reabsorption via OCTN2
• Urinary excretion increases proportionally with plasma concentrations above renal threshold
• Plasma half-life: ~15 hours with normal renal function
• Elimination half-life extended in renal insufficiency

These pharmacokinetic characteristics inform research protocol design, particularly regarding dosing regimens, tissue sampling timepoints, and expected tissue concentrations in experimental models. The extensive tissue accumulation relative to plasma requires consideration when interpreting experimental results.

Research Applications

Energy Metabolism and Mitochondrial Function Studies

L-Carnitine serves as a fundamental research tool for investigating cellular energy metabolism:

• Fatty Acid Oxidation Research: Investigation of beta-oxidation pathways, substrate utilization, and metabolic flux between glucose and fatty acid oxidation. Studies examine L-carnitine’s role in metabolic flexibility and substrate switching.

• Mitochondrial Function Studies: Analysis of oxidative phosphorylation, respiratory chain function, ATP production, and mitochondrial membrane potential. L-Carnitine influences mitochondrial acyl-CoA/CoA ratios, affecting TCA cycle flux and energy production.

• Metabolic Flexibility Research: Examination of cellular adaptation to varying energy substrates, fasting-to-fed transitions, and exercise-induced metabolic shifts. L-Carnitine availability affects the capacity to switch between carbohydrate and lipid oxidation.

• Metabolic Disorder Models: Studies utilizing genetic or diet-induced models of metabolic dysfunction, including obesity, insulin resistance, type 2 diabetes, and metabolic syndrome. L-Carnitine metabolism is frequently disrupted in these conditions.

• Aging and Metabolism Research: Investigation of age-related decline in mitochondrial function, changes in L-carnitine tissue concentrations, and potential interventions targeting metabolic aging.

Research protocols employ diverse approaches including isolated mitochondria preparations, permeabilized muscle fiber respirometry, stable isotope tracers for metabolic flux analysis, cellular bioenergetics assays (Seahorse), and in vivo metabolic phenotyping in rodent models.

Cardiac Physiology and Cardiovascular Research

Cardiac muscle’s high energy demands and reliance on fatty acid oxidation make L-Carnitine particularly relevant for cardiovascular research:

• Cardiac Metabolism Studies: Investigation of myocardial energy substrate utilization, metabolic remodeling in heart failure, and adaptive responses to hemodynamic stress. Normal cardiac muscle derives 60-90% of ATP from fatty acid oxidation.

• Ischemia-Reperfusion Research: Examination of metabolic adaptations during ischemia, reperfusion injury mechanisms, and cardioprotective interventions. L-Carnitine’s role in maintaining acyl-CoA homeostasis during ischemia is actively investigated.

• Heart Failure Models: Studies examining metabolic dysfunction in heart failure, shifts in substrate utilization, and therapeutic interventions targeting cardiac metabolism. Heart failure often features impaired fatty acid oxidation and altered L-carnitine metabolism.

• Hypertrophy and Remodeling Research: Investigation of cardiac hypertrophy models, metabolic remodeling during pressure overload, and the transition from compensated hypertrophy to heart failure.

• Arrhythmia Research: Studies examining relationships between cardiac metabolism, electrophysiology, and arrhythmogenesis. Metabolic interventions including L-carnitine may influence electrical stability.

Experimental models include isolated perfused hearts (Langendorff), ex vivo working heart preparations, in vivo echocardiography with metabolic phenotyping, transgenic models affecting carnitine metabolism (OCTN2 knockout, CPT-I variants), and large animal models of myocardial infarction.

Exercise Physiology and Skeletal Muscle Research

L-Carnitine’s role in skeletal muscle energetics makes it valuable for exercise and muscle metabolism research:

• Exercise Metabolism Studies: Investigation of metabolic responses to acute exercise, adaptations to training, and fatigue mechanisms. L-Carnitine influences lactate metabolism, carbohydrate sparing, and fat oxidation during exercise.

• Muscle Fiber Type Research: Examination of metabolic differences between oxidative (Type I) and glycolytic (Type II) muscle fibers, fiber-specific L-carnitine content, and training-induced adaptations.

• Recovery and Adaptation Studies: Research on post-exercise recovery processes, muscle damage markers, oxidative stress responses, and training adaptations. Some studies investigate L-carnitine’s potential effects on recovery markers.

• Endurance and Performance Research: Studies examining determinants of endurance capacity, VO2max, lactate threshold, and metabolic efficiency. L-Carnitine availability may influence oxidative capacity under certain conditions.

• Muscle Wasting Models: Investigation of cachexia, sarcopenia, denervation atrophy, and disuse-induced muscle loss. Metabolic dysfunction often accompanies muscle wasting conditions.

Research approaches include exercise testing protocols (treadmill, swim tests), muscle biopsies with metabolic analysis, non-invasive spectroscopy (31P-MRS for energetics), isolated muscle preparations, and satellite cell culture for regeneration studies.

Neurological Research and Neuroprotection

Despite the blood-brain barrier, L-Carnitine and its acetylated derivative reach brain tissue and influence neurological function:

• Neuroprotection Studies: Investigation of protective mechanisms against oxidative stress, excitotoxicity, ischemic injury, and neurotoxin exposure. L-Carnitine’s antioxidant properties and effects on mitochondrial function are examined.

• Neurodegenerative Disease Models: Research utilizing models of Alzheimer’s disease, Parkinson’s disease, Huntington’s disease, and amyotrophic lateral sclerosis. Mitochondrial dysfunction features prominently in these conditions.

• Brain Energy Metabolism: Studies examining cerebral glucose utilization, lactate metabolism, ketone body oxidation, and regional metabolic differences. Brain energy metabolism is tightly regulated and metabolically flexible.

• Cognitive Function Research: Investigation of learning, memory consolidation, age-related cognitive decline, and potential metabolic interventions. Acetyl-L-carnitine serves as a precursor for acetylcholine synthesis.

• Peripheral Neuropathy Models: Studies examining diabetic neuropathy, chemotherapy-induced neuropathy, and other peripheral nerve disorders. L-Carnitine deficiency can cause peripheral neuropathy.

• Seizure and Epilepsy Research: Investigation of metabolic influences on seizure susceptibility, anticonvulsant mechanisms, and valproate-induced carnitine depletion effects.

Experimental approaches include behavioral testing (Morris water maze, novel object recognition), electrophysiology (LTP recording), neurochemical analysis, imaging techniques (PET, MRI), and various neurotoxin or transgenic disease models.

Reproductive Biology and Male Fertility Research

Exceptionally high L-Carnitine concentrations in male reproductive tissues support substantial research interest:

• Sperm Metabolism Studies: Investigation of sperm energy production, motility mechanisms, and metabolic requirements for fertilization capacity. Sperm contain high mitochondrial content and depend on oxidative metabolism.

• Male Infertility Research: Studies examining oligospermia, asthenozoospermia, and other male factor infertility conditions. L-Carnitine concentrations correlate with sperm parameters in numerous studies.

• Sperm Quality and Function: Analysis of sperm concentration, motility, morphology, acrosome reaction, and DNA integrity. Metabolic factors influence multiple aspects of sperm function.

• Epididymal Function Research: Investigation of sperm maturation processes occurring during epididymal transit. The epididymis maintains extremely high L-carnitine concentrations.

• Oxidative Stress in Reproduction: Studies examining reactive oxygen species effects on sperm, antioxidant protection mechanisms, and oxidative stress-induced infertility.

Research models include semen analysis protocols, computer-assisted sperm analysis (CASA), in vitro fertilization studies, animal models of male infertility, and epididymal cell cultures.

Aging and Longevity Research

Age-related changes in L-Carnitine metabolism and mitochondrial function connect to fundamental aging research:

• Mitochondrial Aging Research: Investigation of age-related mitochondrial dysfunction, decreased oxidative capacity, increased ROS production, and altered mitochondrial dynamics. Tissue L-carnitine concentrations decline with aging in some tissues.

• Sarcopenia Studies: Research on age-related muscle loss, decreased protein synthesis, increased proteolysis, and metabolic contributions to muscle wasting.

• Cognitive Aging Research: Studies examining age-related cognitive decline, brain metabolism changes, and potential metabolic interventions. Acetyl-L-carnitine research focuses particularly on cognitive aging.

• Healthspan and Lifespan Studies: Investigation of interventions affecting functional capacity during aging and potential longevity effects in model organisms.

• Age-Related Disease Research: Studies connecting metabolic dysfunction to age-related diseases including cardiovascular disease, neurodegeneration, and metabolic disorders.

Research utilizes aged animal models, accelerated aging models (SAMP mice), cellular senescence models, and longitudinal aging studies with comprehensive phenotyping.

Renal Function and Dialysis Research

Kidney disease profoundly affects L-Carnitine homeostasis, creating a research area at the intersection of renal physiology and metabolism:

• Renal Carnitine Handling: Investigation of tubular reabsorption via OCTN2, urinary excretion patterns, and renal threshold determinations.

• Dialysis-Related Carnitine Deficiency: Studies examining L-carnitine losses during hemodialysis, development of deficiency states, and metabolic consequences.

• Uremic Metabolism Research: Investigation of altered energy metabolism in chronic kidney disease, uremic toxin effects on mitochondria, and metabolic acidosis.

• Erythropoietin and Anemia Research: Studies examining L-carnitine’s potential effects on erythropoietin response and anemia in kidney disease.

Research approaches include clinical studies of dialysis patients, animal models of chronic kidney disease (5/6 nephrectomy, adenine-induced nephropathy), and studies of isolated renal tubular cells.

Laboratory Handling and Storage Protocols

Powder Storage:

• Store at -20°C to -80°C in original sealed container (long-term storage)
• Room temperature storage acceptable for short-term use (L-Carnitine is stable)
• Protect from light exposure (minimal light sensitivity but good practice)
• Desiccated storage environment recommended to prevent moisture uptake
• Stability data available for 24+ months at -20°C
• Hygroscopic nature requires resealing immediately after use

Solution Preparation:

• Highly soluble in water, PBS, cell culture media, and physiological saline
• Dissolve completely before use (rapid dissolution due to ionic nature)
• Prepare stock solutions at appropriate concentrations (typically 100-1000 mM)
• Filter sterilize solutions for cell culture applications (0.22 μm filter)
• Adjust pH if necessary (stable across pH 4-9)
• Verify final concentration by LC-MS/MS or spectrophotometric methods

Solution Storage:

• Aqueous solutions stable at 4°C for weeks
• Room temperature storage acceptable for working solutions (days to weeks)
• Long-term storage: -20°C or -80°C in aliquots
• Multiple freeze-thaw cycles acceptable (stable small molecule)
• Sterile solutions for cell culture: store at 4°C, use within 1 month

Experimental Considerations:

• Working concentrations vary widely by application (0.1-10 mM for cell culture; up to 50-500 mg/kg for in vivo studies)
• Consider endogenous L-carnitine concentrations in experimental systems
• Serum contains ~40-60 μM L-carnitine; may need serum-free conditions for some studies
• Cellular uptake requires OCTN2 transporter; consider expression in cell models
• Time course studies important due to slow cellular uptake kinetics

Quality Assurance and Analytical Testing

Each L-Carnitine batch undergoes comprehensive analytical characterization:

Purity Analysis:

• High-Performance Liquid Chromatography (HPLC): ≥98% purity
• Analytical method: Reversed-phase HPLC with UV detection or ELSD
• Ion-exchange HPLC for stereoisomer verification (L vs D vs DL)
• Chiral separation confirms L-stereoisomer (biologically active form)

Structural Verification:

• Electrospray Ionization Mass Spectrometry (ESI-MS): Confirms molecular weight 161.2 Da
• Nuclear Magnetic Resonance (NMR): Verifies structure (¹H-NMR, ¹³C-NMR)
• Infrared Spectroscopy (IR): Confirms functional groups
• Optical rotation measurement: Confirms L-configuration

Contaminant Testing:

• D-Carnitine content: <2% (critical for biological activity)
• Bacterial endotoxin: <5 EU/mg (LAL method) for cell culture applications
• Heavy metals: Below detection limits per USP standards
• Residual solvents: Within ICH guideline limits
• Water content: Karl Fischer titration

Quantitative Analysis:

• Assay by HPLC: Reports actual L-Carnitine content
• Titration methods available for high-purity samples
• Content typically 98-102% of label claim

Documentation:

• Certificate of Analysis (COA) provided with each batch
• Analytical method references and validation data
• Stability data documented for recommended storage conditions
• Batch-specific QC results traceable by lot number
• Material Safety Data Sheet (MSDS/SDS) available

Research Considerations

Experimental Design Factors:

Researchers should consider several factors when designing L-Carnitine experiments:

1. Physiological Relevance: Endogenous L-carnitine concentrations vary dramatically by tissue (muscle ~20 mM, plasma ~50 μM). Choose experimental concentrations reflecting physiological ranges or pharmacological interventions.

2. Stereoisomer Specificity: Only L-carnitine possesses biological activity; D-carnitine may act as competitive inhibitor. Ensure research-grade material is L-stereoisomer, not racemic mixture.

3. Cellular Uptake Kinetics: OCTN2-mediated uptake is saturable with Km ~5-20 μM. Cellular accumulation requires hours to days depending on concentration and transporter expression. Plan experimental timelines accordingly.

4. Metabolic Context: L-Carnitine’s effects depend on metabolic state (fed vs fasted, exercise vs rest, glucose vs fatty acid availability). Control nutritional status in animal studies.

5. Tissue-Specific Effects: Different tissues maintain vastly different L-carnitine concentrations and exhibit varied sensitivity to supplementation. Tissue-specific analyses provide more insight than plasma measurements alone.

6. Chronic vs Acute Studies: Tissue L-carnitine accumulation requires chronic supplementation (weeks) in most models. Acute studies examine immediate metabolic effects; chronic studies assess tissue accumulation and adaptation.

7. Species Differences: Rodent vs human pharmacokinetics and tissue distribution differ. Rats efficiently synthesize L-carnitine; knockout models may be necessary to create deficiency states.

8. Related Compounds: Consider investigating acetyl-L-carnitine (crosses blood-brain barrier more readily), propionyl-L-carnitine (vascular research), or other acyl-carnitine species for specific applications.

Analytical Considerations:

Accurate measurement of L-Carnitine and acylcarnitine species enhances research quality:

• LC-MS/MS Methods: Gold standard for L-carnitine quantification; allows simultaneous measurement of free carnitine, acetylcarnitine, and numerous acylcarnitine species
• Spectrophotometric Assays: Enzymatic cycling assays available but less specific than mass spectrometry
• Radioisotope Methods: ¹⁴C-carnitine or ³H-carnitine for uptake studies, transport characterization, and metabolic flux
• Sample Preparation: Plasma samples require deproteinization; tissue samples require extraction and homogenization; urine samples typically require dilution only
• Acylcarnitine Profiling: Tandem mass spectrometry provides comprehensive acylcarnitine profiles, revealing metabolic pathway activity and potential defects

Mechanism Investigation:

L-Carnitine’s mechanisms of action beyond fatty acid transport remain active research areas:

• Antioxidant Effects: Direct and indirect antioxidant activities investigated in various models
• Gene Expression Modulation: Effects on PPARα, PGC-1α, and metabolic gene expression
• Insulin Sensitivity: Potential mechanisms affecting glucose metabolism and insulin signaling
• Membrane Effects: Interactions with membrane lipids and potential membrane-stabilizing properties
• Acetyl-CoA Buffering: Effects on acetyl-CoA availability for biosynthetic pathways and epigenetic modifications
• TMAO Production: Microbiome-dependent metabolism to trimethylamine and subsequent TMAO formation; cardiovascular implications actively debated

Multiple experimental approaches are often necessary to fully characterize L-Carnitine’s biological activities in specific research contexts.

Compliance and Safety Information

Regulatory Status:
L-Carnitine is provided as a research chemical for in-vitro laboratory studies and preclinical research. L-Carnitine (Levocarnitine) is also FDA-approved as a pharmaceutical agent for specific medical indications (primary carnitine deficiency, secondary carnitine deficiency in end-stage renal disease). Research-grade L-Carnitine is not pharmaceutical grade and is intended exclusively for laboratory research applications.

Intended Use:

• In-vitro cell culture studies and biochemical assays
• In-vivo preclinical research in approved animal models
• Laboratory investigation of metabolic mechanisms
• Academic and institutional research applications
• Mechanistic studies of energy metabolism

NOT Intended For:

• Human consumption or administration
• Therapeutic treatment or diagnosis
• Dietary supplementation (separate dietary supplement grade exists)
• Pharmaceutical manufacturing (requires pharmaceutical grade material)
• Veterinary therapeutic applications without appropriate oversight

Safety Protocols:
Researchers should follow standard laboratory safety practices when handling L-Carnitine:

• Use appropriate personal protective equipment (lab coat, gloves, safety glasses)
• Handle in well-ventilated areas
• Follow institutional safety guidelines
• L-Carnitine exhibits low toxicity but standard chemical handling procedures apply
• Dispose of waste according to local regulations for chemical waste
• Consult material safety data sheet (MSDS/SDS) for additional safety information

Toxicity Information:

• LD50 (oral, rat): >8,000 mg/kg (very low acute toxicity)
• LD50 (IV, mouse): >1,200 mg/kg
• Non-mutagenic in standard assays
• Teratology studies show no developmental toxicity
• Generally recognized as safe compound with extensive human use data

—
